Robotic value priced full-featured palletizer.
Any production line can now be automated.

Robotic palletizing has become an increasingly accepted alternative to traditional layer palletizing, but the solution is not without challenges. Typical generic robotic palletizers experiences limits on products that can be handled, performance issues with deviations in product uniformity, special training to handle complexities of robot programming, large footprint, custom integration, and the expense of support. All these shortcomings are eliminated with the Pick & Place robotic palletizer.

  • Best value: palletize any production line
  • Easy to use and ready to run
  • Highest safety rating
FULL FEATURED VALUE SOLUTION

TopTier’s low infeed Pick & Place robotic palletizer provides unmatched capabilities for low to moderate rate applications at a price point allowing any production line to be automated. This palletizer has the smallest footprint of any full-featured palletizing solution.

  • Smallest footprint available for full-featured automatic palletizing
  • Patented Sweep Turn infeed builds precise rows at rates higher than competitive solutions
  • Full bottom support robotic handling eliminates vacuum lifting
  • 6"x6" to 24"x16" products handled automatically
  • Allen Bradley controls with servo controlled pick and place motion
  • 9" PanelView HMI with intuitive graphics interface to manage patterns and tune machine functions
  • Category 3 PLd safety standard with controlled entrance preventing hazard exposure
  • Configurable to fit in any space with three load exit or entrance sides
  • Concurrent wrapping is not available
SAFETY FIRST

TopTier’s Pick & Place robotic palletizers are a fully integrated purpose built palletizing solution, as opposed to an assembly of a robot, guarding, end of arm tooling with separate controls. Each frame element is an integral part of a Category 3 PLd controlled entrance safety enclosure. 100% bottom supporting row build and pick and place systems are integrated into the frame structure, including Allen Bradley controls. Safety is not an accessory. The integrated safety system with controlled entrance protocols prevent hazard until the safety system affirms safe conditions exist.


BOTTOM SUPPORT

Limitations of nearly all robotic pick to pallet solutions are products being palletized must be suitable for vacuum top picking with rate potential limited due to single case pick to pallet cycles. TopTier’s new Pick & Place model has overcome such limitations combining patented row building technology with an Allen Bradley servo-controlled row pick and place solution where product is 100% bottom supported until deposited on load. The resulting solution achieves higher rates, can handle nearly any product, and is delivered 100% assembled ready for work in the smallest and most configurable footprint available.

Each pick and place cycle handles a full row precisely and independently assembled in parallel to pick and place cycles using lower mechanism speeds with greater reliability, resulting in higher rates while building superior loads. Regardless of the product footprint, the row bottom support floor automatically adjusts to product size using patent pending technology. At deposit, the support floor is pulled out from under the row placing the row exactly as required for a tight layer and load.

"The robotic Pick & Place machine is truly plug and play. Position with a forklift and it’s ready for work."
~David Snelson, Director of Sales



Performance
Rates 10-12 cases per minute
Products Nearly any product can be palletized, including open top display cases, telescoping lid cases, and trays - film wrapped or not.
Infeed Low
Load Capacity
Infeed Height 23" to 60"
Minimum Case Dimension Minimum Case Dimension
Maximum Case Dimension 29"
Maximum Case Height 18"
Standard Layer Weight 300lbs
Minimum Layer Dimension 38"
Maximum Layer Dimension 50"
Standard Load Height 60" or 72"
Machine Structure
Footprint Only 89” wide by 129” long
Film Delivery System
Film Delivery System Not available. Available as option on Low Infeed and High Infeed palletizers.
Operator Interface
PLC Allen Bradley controls with servo controlled pick and place motion
HMI 9” PanelView HMI with intuitive graphics interface to manage patterns and tune machine functions
Utility Requirements
Electrical 480V, 20A, 3PH
Air 1-25 CFM
Safety Features
Category 3 Pld Standard Category 3 PLd safety standard with controlled entrance preventing hazard exposure
Palletizing

TopTier Pick & Place

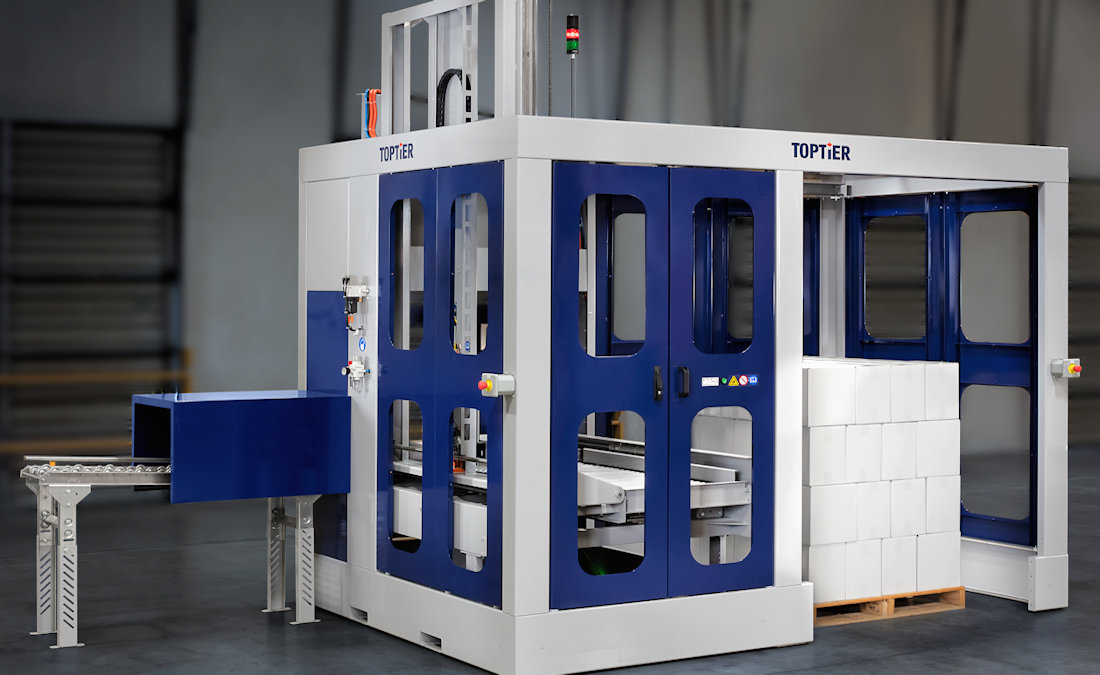

This robotic palletizer system features the smallest automated palletizer footprint! Enjoy case flexibility, ease-of-use, and Category 3 PLd in one compact machine.
