At 17 RPM, this low to medium volume made in the USA automatic stretch wrapper sets the standard for speed and efficiency in its category.
Keeping our customers safe is priority one at Robopac. Category 3 level safety is included with the new RT Automatic. Category 3 is designed so that a single fault in any of its parts does not lead to the loss of a safety function.
For the ultimate in safety, Rolling Safety Doors™ keep the operator safe by completely closing off entrance to the wrapping area on both sides of the load. This prevents the operator from accidentally entering the wrap zone which can cause serious injury. Safety Guard™ detects any obstruction at the bottom of the Rolling Safety Doors that may keep the doors from completely closing. This prevents the wrap cycle from initiating which ensures supreme safety performance. This safety platform replaces costly fencing which also saves valuable space within a facility.

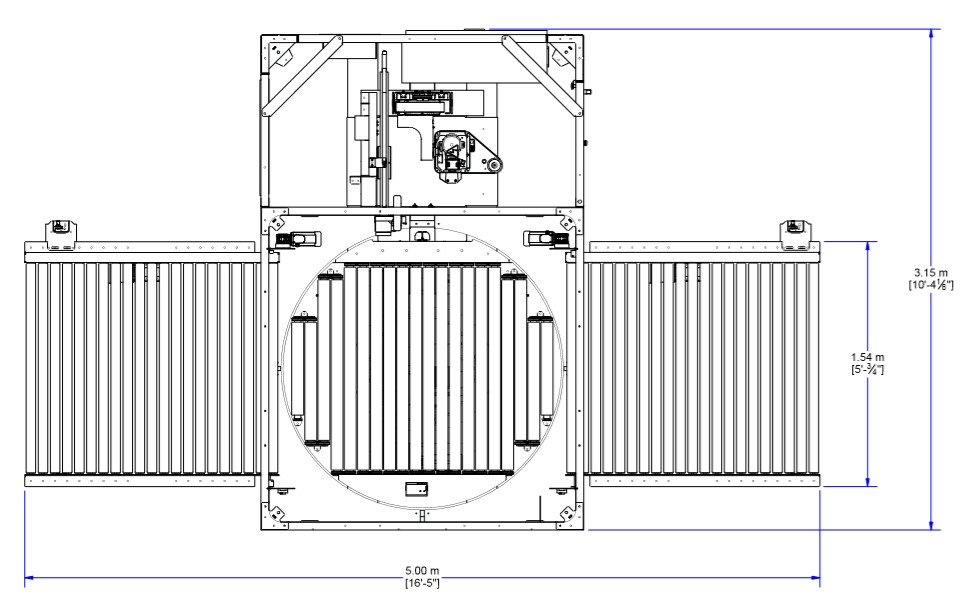

With one of the smallest footprints in its category at 123” deep x 198” wide (169 sq. ft.), the RT Automatic saves valuable floor space for the food, beverage, and other industries where floor space is extremely valuable.
With 250% standard pre-stretch included, the RT Automatic guarantees that stretch film will go further which saves money. Depending upon the operations throughput, an ROI can be calculated demonstrating film savings and payback period for the machine.
For those who are taking the next step into automation, the RT Automatic will enable users to wrap faster while using less space and film while keeping your operators safe. All of which equates to superior performance.
Performance |
|
Production Speed |
40 LPH |
Rotation Speed |
17 RPM |
Load Capacity |
|
Max Load Weight |
4000 lbs. |
Max Load Dimensions (L X W x H) |
54" X 48" X 82" |
Min Load Dimensions (L X W X H) |
36" X 36" X 24" |
Max Inward Load Position (with respect to the pallet) |
-4" |
Max Outward Load Position (with respect the the pallet) |
4" |
Machine Structure |
|
Frame Construction |
Formed Steel |
Film Delivery System |
|
Single motor stretch carriage |
150-300% (250% standard) |
Dual Motor Stretch Carriage (option) |
100-400% (250% standard) |
Cube® "SMART Stretch Wrapping" Technology (option) |
Innovative technology that combines multi-level variable pre-stretch, multi-level variable containment force, pro-active corner compensation, and strategic film placement to successfully wrap loads & ensure that they reach your customer in as-made condition by maintaining proper wrapping standards. |
Standard Film Width |
20" (30" optional) |
Cut and Swipe System |
Pressing film onto the load (no welding system) |
Clamp |
Pincher Style, Fixed position |
Carriage up / down speed (min/max) |
3 - 18 FPM |
Roping System |
Partial roping with fixed roller |
Height Sensing |
Photocell |
Film Threading |
Patented S-Pattern |
Corner Compensation |
Cube 1 |
Film Thickness |
50 gauge - 150 gauge |
Operator Interface |
|
Control Panel |
Allen Bradley Panelview 7, 6’’ HMI; Compactlogix PLC; Power Flex drives |
Enclosure |
NEMA 12 Enclosure (IP 54) |
Wrapping Menus |
12+ Programmable Menus |
Utility Requirements |
|
Electrical |
460V, 30 amp, 60Hz, 3 Phase |
Air Pressure |
3-5 CFM@80 PSI clean, dry air |
Safety Features |
|
Category 3 Safety Features |
Mechanics and Pneumatics - designed so that a single fault in any of its parts does not lead to the loss of a safety function |
Rolling Safety Doors™ |
Keep the operator safe by completely closing off entrance to the wrapping area on both sides of the load. This prevents the operator from accidentally entering the wrap zone which can cause serious injury. |
Safety Guard™ |
Detects any obstruction at the bottom of the Rolling Safety Doors that may keep the doors from completely closing. This prevents the wrap cycle from initiating which ensures supreme safety performance. This safety platform replaces costly fencing which also saves valuable space within a facility. |
Emergency-Stop Push Button |
Yes |
UL 508A Compliant |
Yes |
Safety Guard Door & Switch |
Yes |
